RF THERMOABLATION SYSTEM

Radiofrequency thermal ablation is an established technique for the treatment of primary and secondary neoplasms of parenchymatous organs (liver, lung, kidney), of some glands (thyroid and adrenal) and some bone neoplasms.

For certain cases, this minimally invasive technique is considered the “gold standard” in the line with surgery and several studies have been published with a large follow up that document its effectiveness.

Percutaneous insertion (US or CT guided) of a needle electrode into the target zone, which is implanted together with dispersive plates that will form a monopolar circuit through which a generator will provide specific RF waves that necrotize the affected area.

   DOWNLOAD BROCHURE

    DOWNLOAD NECROSIS AREAS DIAGRAM

DUAL MODE

Functions in temperature or power mode. Additional safety in the confirmation of tissue necrosis

WIDE RANGE OF SIZES AND MODELS OF ELECTRODES

Utilize the most suitable electrode for each lesion

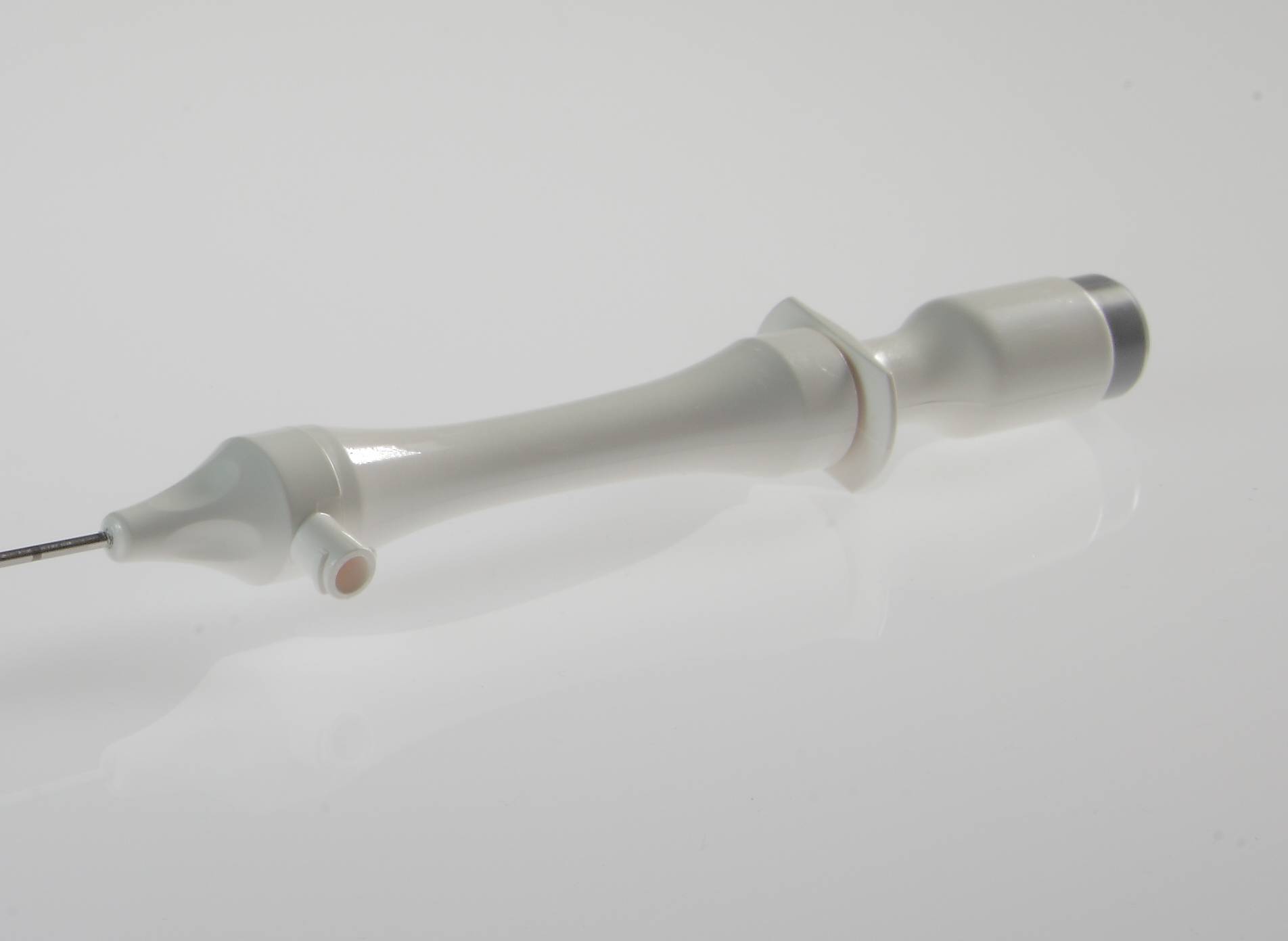

ERGONOMIC AND BACKFLOW PREVENTER HAND PIECE THAT CAN BE USED WITH ONE HAND

The design of the hand piece allows the operator to use the probe and ultrasound at the same time

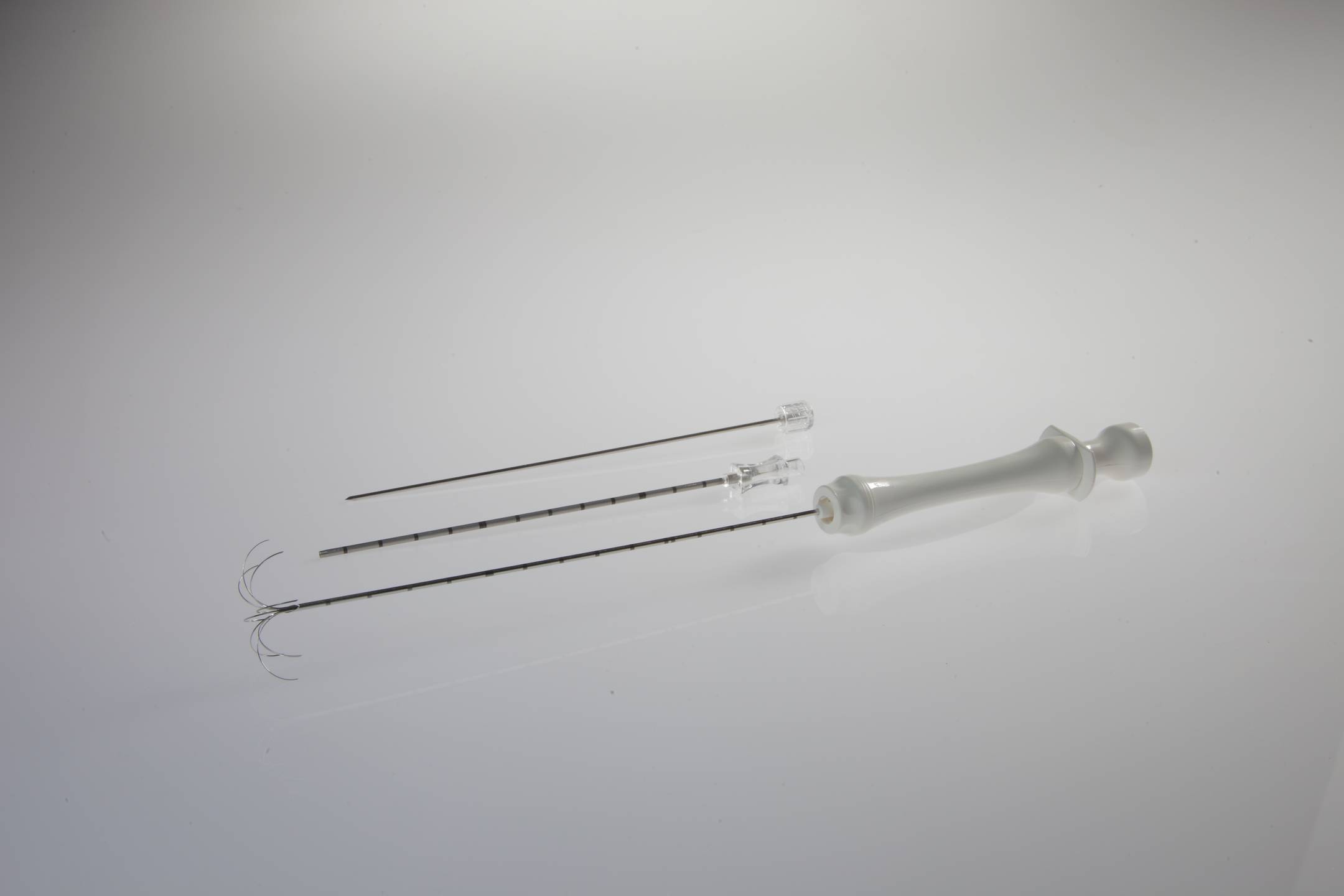

ELECTRODE AVAILABLE WITH A COAXIAL INTRODUCER

Facilitates CT guided procedures

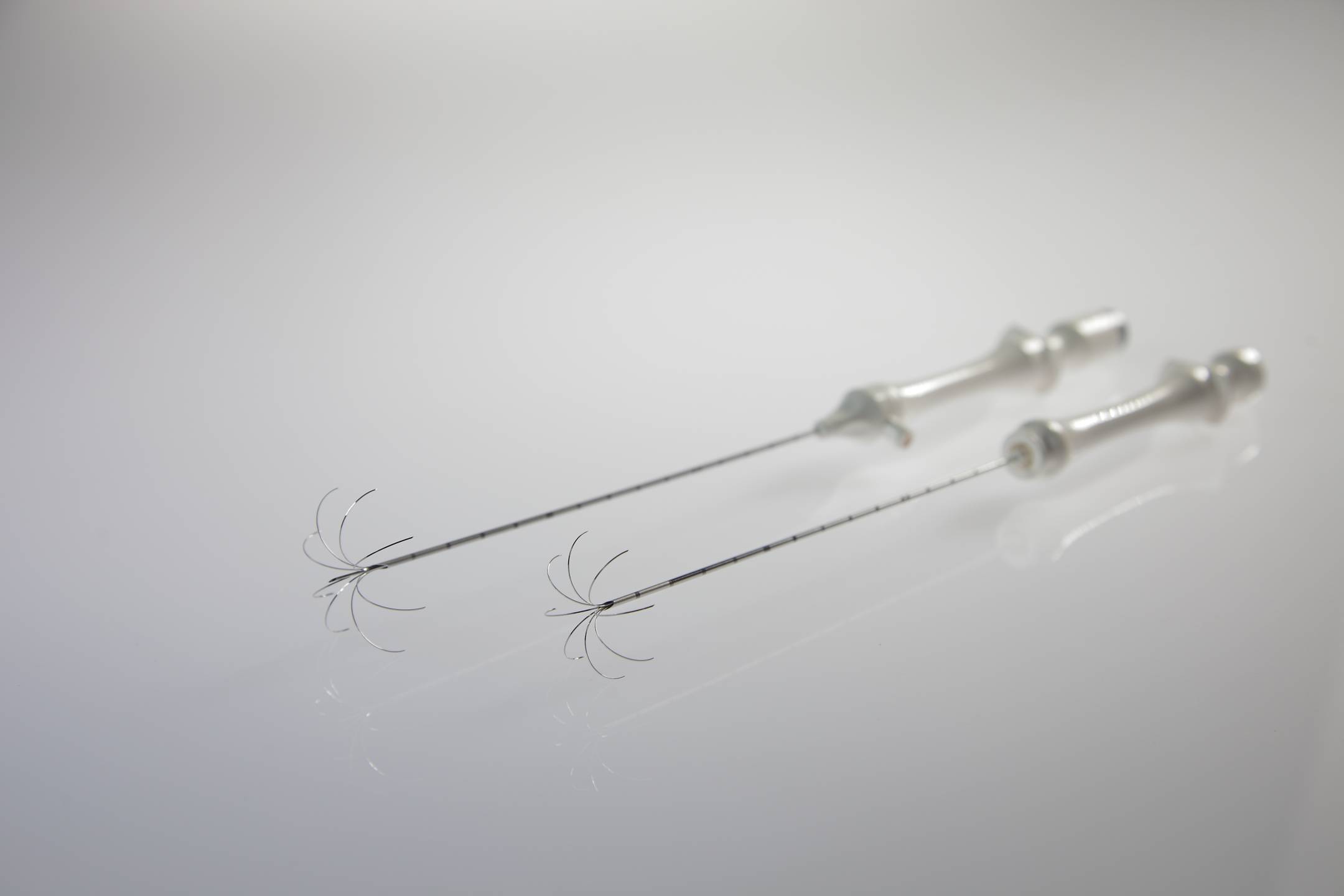

EXTRATHIN – 8 HOOKS:

Code Description Pcs/Box
MB708172 Cannula 17G, 15cm, diameter hooks open 2cm 1
MB708173 Cannula 17G, 15cm, diameter hooks open 3cm 1
MB7081735 Cannula 17G, 15cm, diameter hooks open 3.5cm 1
MB708174 Cannula 17G, 15cm, diameter hooks open 4cm 1
MB708372 Cannula 17G, 20cm, diameter hooks open 2cm 1
MB708373 Cannula 17G, 20cm, diameter hooks open 3cm 1
MB7083735 Cannula 17G, 20cm, diameter hooks open 3.5cm 1
MB708374 Cannula 17G, 20cm, diameter hooks open 4cm 1

EXTRATHIN – SEPTEMBER 8 HOOKS WITH COAXIAL INTRODUCER:

Code Description Pcs/Box
MB708172C Cannula 15G, 15/12.5cm, diameter hooks open 2cm 1
MB708173C Cannula 15G, 15/12.5cm, diameter hooks open 3cm 1
MB7081735C Cannula 15G, 15/12.5cm, diameter hooks open 3.5cm 1
MB708174C Cannula 15G, 15/12.5cm, diameter hooks open 4cm 1
MB708372C Cannula 15G, 20/17.5cm, diameter hooks open 2cm 1
MB708373C Cannula 15G, 20/17.5cm, diameter hooks open 3cm 1
MB7083735C Cannula 15G, 20/17.5cm, diameter hooks open 3.5cm 1
MB708374C Cannula 15G, 20/17.5cm, diameter hooks open 4cm 1

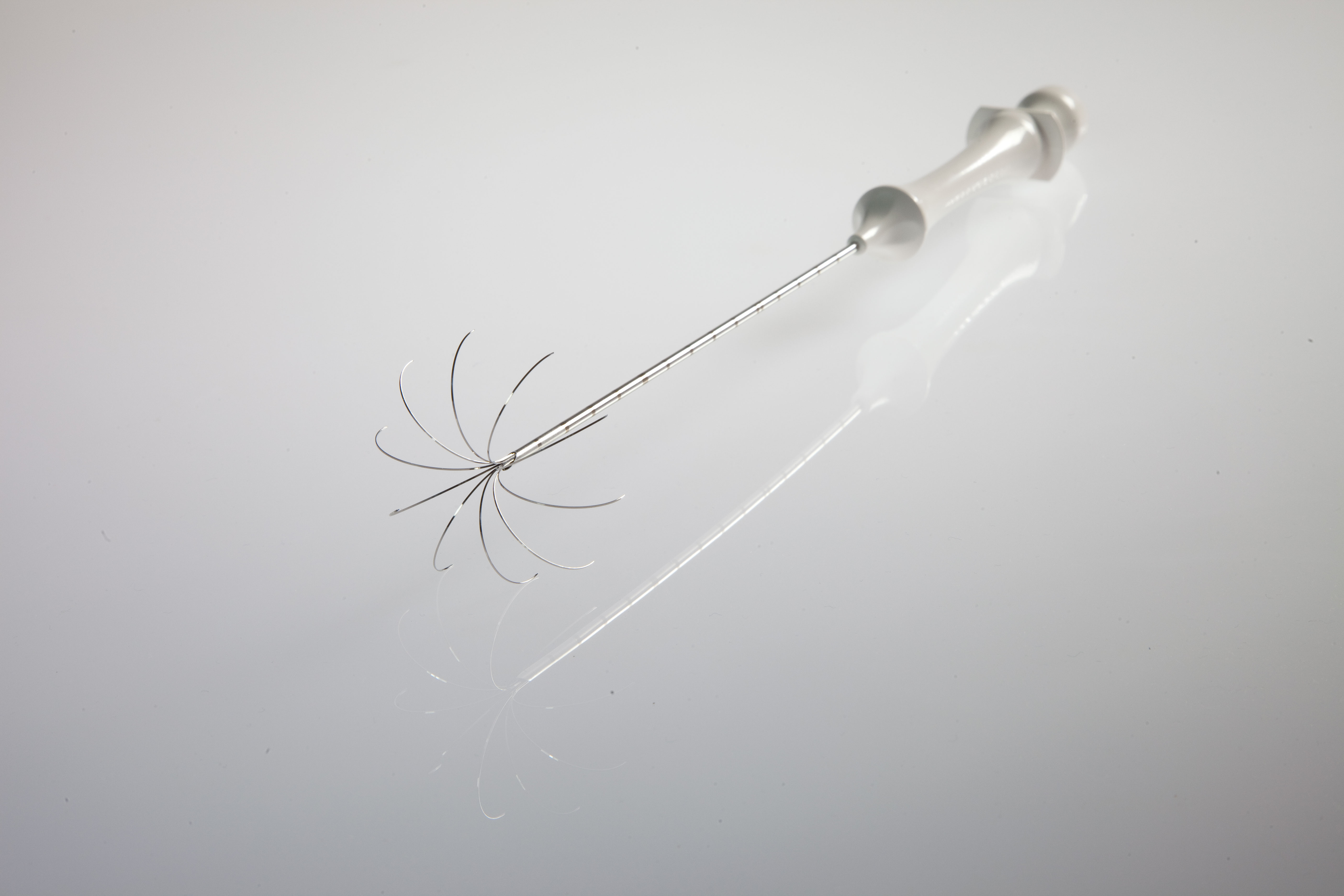

FUSION 9-9 HOOKS WITH SIDE PORT:

Code Description Pcs/Box
MB709162 Cannula 16G, 15cm, diameter hooks open 2cm 1
MB708163 Cannula 16G, 15cm, diameter hooks open 3cm 1
MB7091635 Cannula 16G, 15cm, diameter hooks open 3.5cm 1
MB709164 Cannula 16G, 15cm, diameter hooks open 4cm 1
MB7091645 Cannula 16G, 15cm, diameter hooks open 4.5cm 1
MB709362 Cannula 16G, 20cm, diameter hooks open 2cm 1
MB708363 Cannula 16G, 20cm, diameter hooks open 3cm 1
MB7093635 Cannula 16G, 20cm, diameter hooks open 3.5cm 1
MB709364 Cannula 16G, 20cm, diameter hooks open 4cm 1
MB7093645 Cannula 16G, 20cm, diameter hooks open 4.5cm 1

FUSION 8-8 HOOKS + 1 THERMOCOUPLE WITH SIDE PORT:

Code Description Pcs/Box
MB708162 Cannula 16G, 15cm, diameter hooks open 2cm 1
MB708163 Cannula 16G, 15cm, diameter hooks open 3cm 1
MB7081635 Cannula 16G, 15cm, diameter hooks open 3.5cm 1
MB708164 Cannula 16G, 15cm, diameter hooks open 4cm 1
MB7081645 Cannula 16G, 15cm, diameter hooks open 4.5cm 1
MB708362 Cannula 16G, 20cm, diameter hooks open 2cm 1
MB708363 Cannula 16G, 20cm, diameter hooks open 3cm 1
MB7083635 Cannula 16G, 20cm, diameter hooks open 3.5cm 1
MB708364 Cannula 16G, 20cm, diameter hooks open 4cm 1
MB7083645 Cannula 16G, 20cm, diameter hooks open 4.5cm 1

SINGLE POINT NEEDLE:

Code Description Pcs/Box
MB7013705 Cannula 17G, 20cm, tip exposed length 0.5 cm 1
MB701371 Cannula 17G, 20cm, tip exposed length 1.0 cm 1

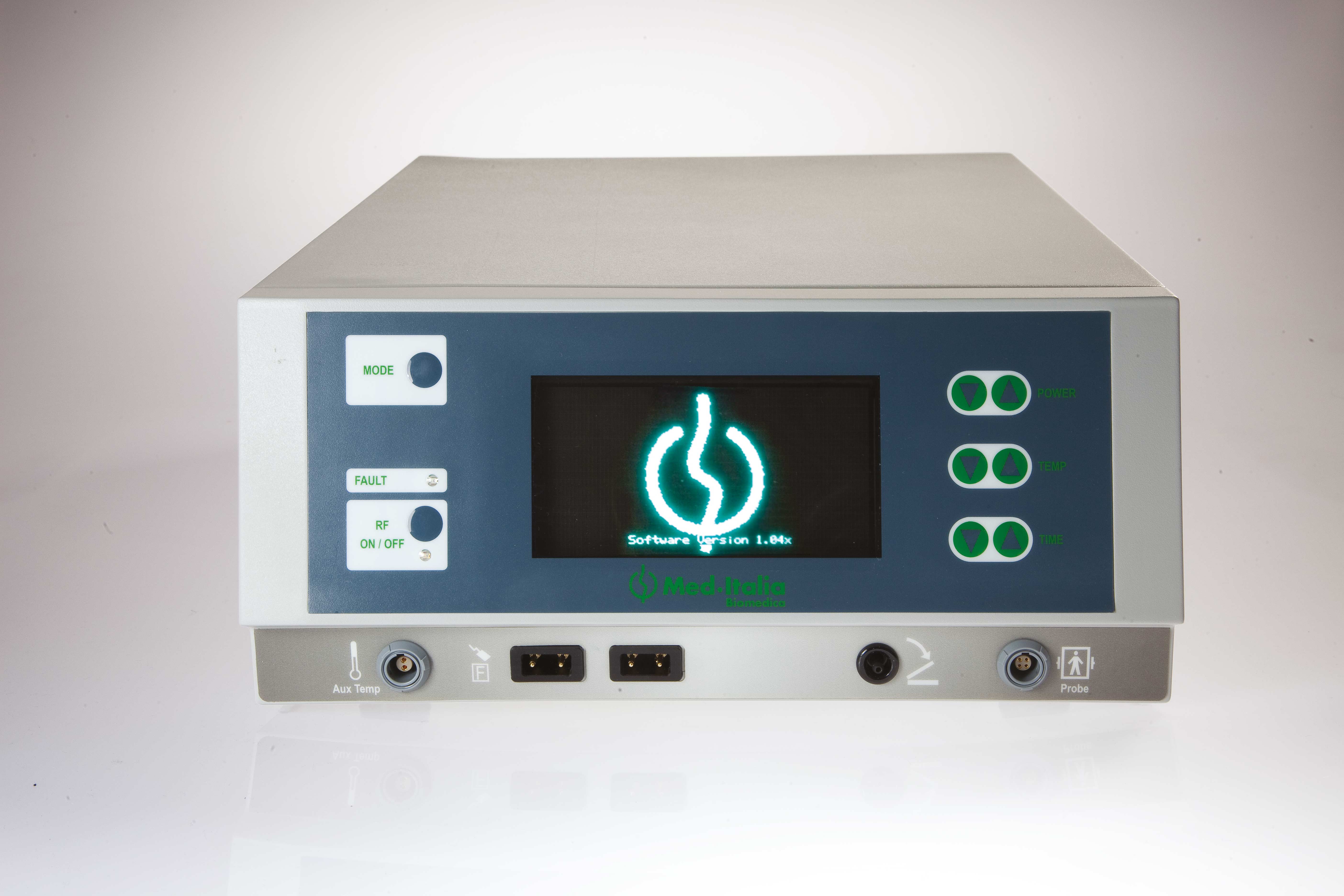

RF GENERATOR:

Code Description
MSI S-1500 RF generator 150 W, dual mode
